Mahsulot tavsifi:

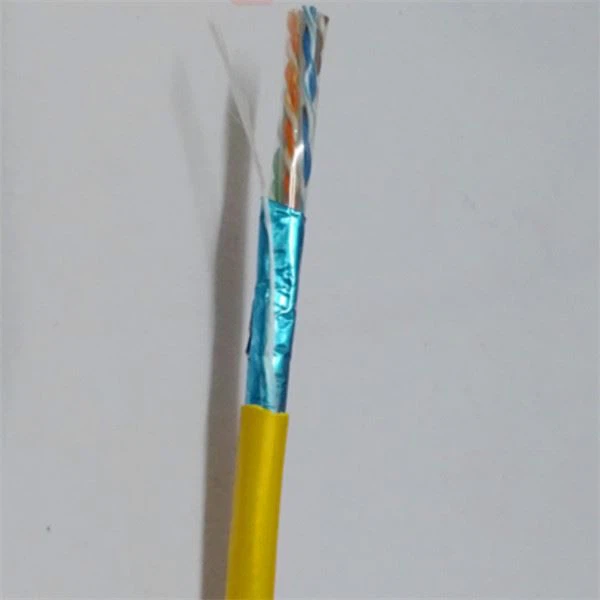

Turi: Ochiq FTP Cat5e kabeli alyuminiy folga ekranli tarmoq kabeli
Ilova: Tashqi LAN simlari
Tashqi FTP Cat5e uchun tuzilma:
Dirijyor | 24 AWG mis sim |
Izolyatsiya | HDPE yoki ko'pikli pe, rangli belgilar bilan oq izolyatsiyalangan sim |
Juftlik rangi | Oq-ko'k/ko'k, oq-to'q sariq, oq-yashil/yashil, oq-jigarrang/jigarrang |
Tuproq elektrodi | Qalaylangan mis sim |
ekranlash | Alyuminiy plastik kompozit lenta |
Kurtka | PVX{0}} qora LLDPE, nominal diametri 6,1+/- 0,5 mm |
Yordamchilar | Poly lenta, yirtiqsiz yoki mijozlarning tanloviga ko'ra |
chop etish | Mijozlarning talablariga muvofiq |
Ochiq FTP Cat5e sinov standarti:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Asosiy ilovalar:
Ethernet, 10Base-T, 1000Base-T4,100Base-TX, ATM, multimedia, arterial simlar
Mexanik xususiyatlar:
Maksimal tortish kuchi | 50N |
Min. egilgan radius | 60 mm |
Nominal og'irlik | 50 kg/km |
Ish harorati | -15~+70℃ |
O'rnatish harorati | +5~+40℃ |
Yonish xususiyati | IEC332.1, VW1, IEC332.3 yoki qoplama turlari bo'yicha |
Mahsulot uzunligi | Standart uzunligi 305 m |
Tashqi FTP Cat5e uchun elektr xususiyati:
Chastotasi (MGts) | RL (dB) | ATT (Db/100m) | KEYINGI (dB) | PSNEXT (dB) | ELFEXT (dB) | Mulk Empedans (ohm) |
0.772 | 16.4 | 1.85 | 67 | 64 | 67.8 | 100±15 |
1 | 17 | 2.04 | 65.3 | 62.3 | 63.8 | |
4 | 20 | 4.1 | 56.3 | 53.3 | 51.7 | |
8 | 21 | 5.8 | 51.8 | 48.8 | 45.7 | |
10 | 22 | 6.5 | 50.3 | 47.3 | 43.8 | |
16 | 20 | 8.2 | 47.3 | 44.3 | 39.7 | |
20 | 20 | 9.3 | 45.8 | 42.8 | 37.7 | |
25 | 22.5 | 10.4 | 44.3 | 41.3 | 35.8 | |
31.25 | 18 | 11.7 | 42.9 | 39.9 | 33.9 | |
62.5 | 16 | 17 | 38.4 | 35.4 | 27.8 | |
100 | 15 | 22 | 35.3 | 32.3 | 23.8 |
