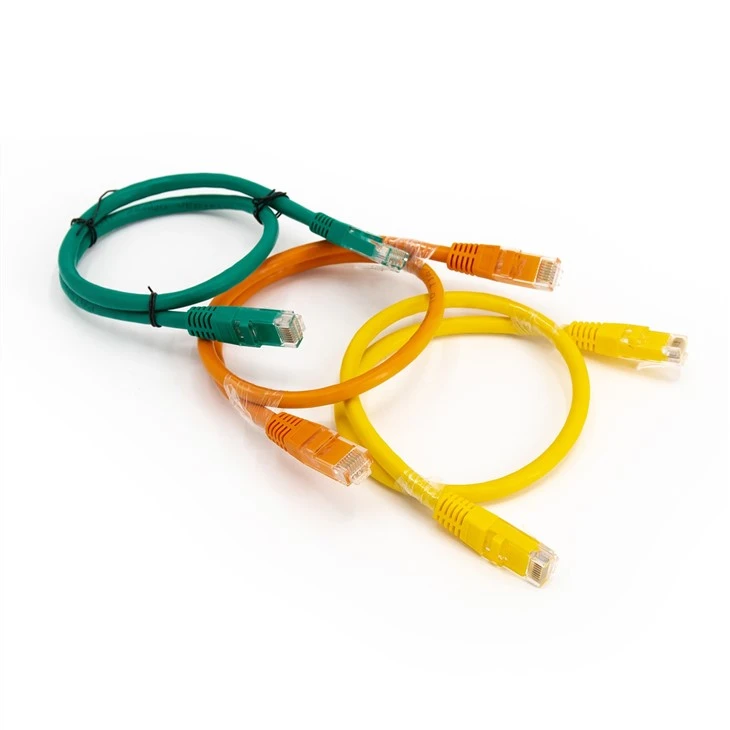

Shielded Cat6 Patch cord uchun ishlash standarti:
Ulagich o'tkazgich: -EIA/TIA 568-C.2 CAT 6
Turi: metall folga qalqoni yoki metall to'quv qalqoni bilan
Himoyalangan Cat6 patch kabelining malakasi:
● EIA/TIA 568-C.2 CAT 6
● -ISO 11801 2-nashr D SINF
● EN 50173 2-nashr D SINF
Ilova maydonlari: Ethernet, Kompyuter, tarmoq, mahalliy tarmoq
● ISDN
● TOKEN RING 4/16 Mbits – 100 VG – AnyLAN
● TPP-PMD/TP-DDI –ATM 155,622,1200 Mbit
● ETHERNET: 10 Base Tx, 100 BaseT4, 1000 Base T
Mexanik xususiyatlar:
Maksimal tortish kuchi | 50N |
Ish harorati | -15~+70℃ |
Yong'inga qarshilik | IEC332.1, VW1, IEC332.3 yoki qoplama turi bo'yicha |
Mahsulot uzunligi | 0,5/1/2/3/4/10 m yoki mijozlarning tanloviga ko'ra |
Shielded Cat6 Patch Cord kabeli uchun konstruksiya
Dirijyor | 7/0,158 o'ralgan yumshoq o'tkazgich |
Izolyatsiya | Qattiq PE, rangli belgilar bilan oq sim |
Juftlik rangi | Oq-ko'k/ko'k, oq-to'q sariq, oq-yashil/yashil, oq-jigarrang/jigarrang |
ekranlash | Yo'q |
Kurtka | PVX, CMX, CM, CMR, qo'rg'oshinli yoki qo'rg'oshinsiz, past tutunli halogen variant uchun bepul |
Elektr xususiyati:
Chastotasi (MGts) | KEYINGI (dB/100m) | Qaytish yo'qolishi (dB/100m) | ||||||
1m | 2m | 5m | 10m | 1m | 2m | 5m | 10m | |
1 | 65 | 65 | 65 | 65 | 19.8 | 19.8 | 19.8 | 19.8 |
4 | 65 | 65 | 65 | 65 | 21.61 | 21.61 | 21.61 | 21.61 |
10 | 65 | 65 | 64.5 | 62.9 | 22.8 | 22.8 | 22.8 | 22.8 |
16 | 62.6 | 62 | 60.5 | 59 | 23.41 | 23.41 | 23.41 | 23.41 |
20 | 60.7 | 60.1 | 58.6 | 57.2 | 23.7 | 23.7 | 23.7 | 23.7 |
31.25 | 56.7 | 56.2 | 54.9 | 53.6 | 23.05 | 23.05 | 23.05 | 23.05 |
62.5 | 51 | 50.4 | 49.2 | 48.1 | 20.04 | 20.04 | 20.04 | 20.04 |
100 | 47 | 46.4 | 45.3 | 44.4 | 18 | 18 | 18 | 18 |
250 | 39.2 | 38.8 | 38.1 | 37.6 | 14 | 14 | 14 | 14 |
